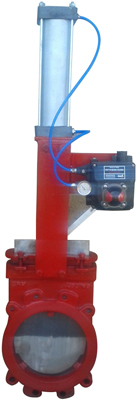

Pneumatic Operated Knife Gate Valves
Pneumatic Operated Knife Gate Valve Manufacturer in India | Concorde Valves & Automations
Concorde Valves & Automations is a reliable Pneumatic Operated Knife Gate Valve Manufacturer in India offering heavy-duty valves designed for efficient isolation and flow control in slurry, viscous, and solid-laden media. These valves are actuated using pneumatic cylinders, enabling fast and automated operation in demanding industrial environments.
Our pneumatic knife gate valves are manufactured using high-quality materials such as cast iron, cast steel and stainless steel to ensure durability, corrosion resistance, and long service life. These valves are widely used in mining, pulp & paper, wastewater treatment plants, cement industries, power plants and chemical processing facilities where reliable shut-off performance is required.
Why Choose Concorde Valves & Automations?
- ✔ ISO Quality Manufacturing Standards
- ✔ 14+ Years Industry Experience
- ✔ Advanced Engineering & Testing Facilities
- ✔ Durable Industrial Grade Materials
- ✔ Pan India Supply & Export Capability
- ✔ Reliable After-Sales Support
Types of Pneumatic Operated Knife Gate Valves
- Single Acting Pneumatic Knife Gate Valve – Operates using air pressure in one direction and spring return for closing or opening.
- Double Acting Pneumatic Knife Gate Valve – Uses air pressure for both opening and closing operations, ensuring precise control.
- Wafer Type Knife Gate Valve – Compact and lightweight design suitable for space-constrained installations.
- Lug Type Knife Gate Valve – Allows easy installation and maintenance in pipeline systems with end-of-line service.
- Slurry Knife Gate Valve – Specifically designed for handling abrasive and viscous media like slurry and semi-solid materials.
- Bi-Directional Knife Gate Valve – Enables flow and shut-off in both directions, enhancing flexibility in operation.
How Pneumatic Operated Knife Gate Valves Work
Pneumatic operated knife gate valves are widely used in industrial applications for handling thick fluids, slurries, and solid-laden media. These valves use compressed air to actuate the valve, providing fast and efficient operation.
When compressed air is supplied to the actuator, it moves the gate (blade) up or down to open or close the valve. In double acting systems, air controls both opening and closing, while in single acting systems, a spring mechanism assists in returning the gate to its original position. This automated operation ensures reliable flow control even in demanding conditions.
As a trusted pneumatic operated knife gate valve manufacturer in Mumbai, we offer robust and high-performance valves designed for durability, tight shut-off, and efficient handling of challenging industrial applications.
Applications
- Mining and Slurry Handling Systems
- Pulp and Paper Industries
- Wastewater Treatment Plants
- Cement and Power Plants
- Chemical Processing Industries
- Bulk Material Handling Systems
Benefits
- Efficient shut-off for slurry and viscous media
- Automated pneumatic operation for faster control
- Heavy-duty design suitable for harsh environments
- Corrosion resistant materials
- Low maintenance and long service life
- Compact design suitable for industrial pipelines
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Pneumatic Operated Knife Gate Valve |
| Size Range | 50NB – 600NB (Above 600NB on request) |
| Pressure Rating | 150 PSI |
| Temperature Range | 0°C – 120°C |
| Body & Chest | One-piece casting: Cast Iron FG260, Cast Steel WCB, CF8, CF8M |
| Seat | Integral to body, Soft seat optional |
| Gate Material | AISI SS 304, 316, 316L, 317, 317L |
| Screw Spindle | AISI SS 410, 304, 316 |
| Nut | Brass |
| Yoke | Plate Type Mild Steel |
| Gland Follower | Cast Iron, Cast Steel, Ductile Iron, CF8, CF8M |
| Gland Packing | PTFE, PTFE Impregnated |
| End Connection | Lugged Ends |
| Port Type | Standard Round Port, Optional V-Port or Diamond Port |
Advantages
- Efficient Slurry Handling: Ideal for thick fluids, pulp, and solid particles.
- Automated Operation: Pneumatic actuator enables remote and quick valve operation.
- Robust Construction: Strong body materials ensure durability in heavy-duty applications.
- Reliable Shut-Off: Knife edge gate ensures tight sealing performance.
- Low Maintenance: Simple design reduces operational maintenance costs.
Pneumatic Knife Gate Valve Supplier in India
Concorde Valves & Automations is a trusted pneumatic knife gate valve supplier in India offering robust valves with high performance, competitive pricing and timely delivery for industrial slurry handling and process control applications.
We also offer a wide range of high-quality solenoid valves designed for precise fluid control and reliable automation in industrial pipeline and process systems.
Frequently Asked Questions
A pneumatic knife gate valve uses compressed air to operate a sharp-edged gate that controls the flow of slurry, liquids, or solid particles.
They are commonly used in mining, wastewater treatment, pulp and paper plants, cement industries and slurry pipelines.
Standard sizes range from 50NB to 600NB, with larger sizes available on request.
The gate is typically manufactured using stainless steel grades such as SS304, SS316 and SS316L.
Pneumatic knife gate valves generally operate up to 150 PSI depending on the valve design.
Standard round ports are available with optional V-port and diamond port configurations.
Yes, both metal seated and soft seated options are available depending on application requirements.
Yes, customized sizes, materials and actuator configurations can be provided as per project requirements.
Looking for Pneumatic Operated Knife Gate Valves Supplier in Mumbai?
We offer premium pneumatic operated knife gate valves in Mumbai, designed for smooth performance in handling slurry, thick fluids, and tough industrial conditions.
