ELECTRICALLY OPERATED BALL VALVE

CONCORDE VALVES AND AUTOMATIONS is the dealer of ELECTRICALLY BALL VALVE. Its popular among clients because of its long lasting life Performance and coustomers trust on our products.

While talking about electric ball valves, we need to know that the valves are not electric but the actuators used for operations are electric. There are two types of electric ball valves available at Concorde Valves and Automation: 2-way valve and 3-way valves.

The 2-way ball valves with electric actuators are used for basic on and off applications. These valves are available in many different materials like PVC, Brass, Ni Plated Brass, No lead Brass, Stainless steel, CS or SS, PFA lined DI, etc.

The 3-way Electric ball valves are used for diverting purposes like bypass lines or input or output line selectors. These valves also come with different materials and actuator types like PVC, Brass, T-clamp, Stainless steel, CS or SS, etc.

These Electric Ball Valve are available at very economical cost and are reliable for a very long period. They are very convenient to use and that’s why the first choice of plumbers. Visit Concorde and buy the electric ball valve of your requirement.

BALL VALVES SPECIFICATION

BODY IC ASTM A 216, 351 Gr CF8 | CF8M | CF3 | CF3M
BALL ASTM A 351 Gr CF8 | CF8M | CF3 | CF3M
STEM AISI 304 | AISI 316
SEAT & SEALS PTFE
MFG STD GENERALLY CONFORMING TO BS 5351 | ISO 17292
BLOW OUT PROOF STEM FLOATING BALL FULL BORE TESTING BS 6755
ENDS SCREWED TO BSP | BSPT | NPT | SOCKET WELD TO ASME B 16.11
FLANGED END 150#, 300#, 600#
SIZE RANGE 15 MM TO 100 MM

Electric actuator Standard Technical Parameter

Technical Specifications:

Actuator Body Aluminium Alloy, Waterproof level: IP67, NEMA4 or 6
Power Supply 24/110/220/380V AC +10%,24/110/220VDC 50/60HZ +10%
Motor Squirrel-cage Asynchronous Motor
Limit Switch 2* open/close, SPDT, 250V AC, 10A
Assistant Limit Switch 2* open/close, SPDT, 250V AC, 10A
Stroke 90 - 270+ 10 (please inform us if over 90)
Failure Protection/Operating Temperature Internal thermal protection. Open: 120 C + 5 C, Close: 97 C + 15 C
lndicator Continuous position indicate
Manual Operation Spanner (option: handwheel)
Self-lock Device Self-lock by worm and worm gear
Mechanical Limit External adjusting bolts (2 pieces)
Connecting Hole M18 (2 pieces)
Ambient Temperature -20 C ~+70 C
Lubrication Aluminum-base grease(EP type)
Material Steel, Aluminum alloy, Aluminum bronze, Polycarbonate
Ambient Humidity Max 90% RH
Anti-vibration X Y Z 10g, 0.2~34HZ, 30 minutes
External Coating Dry Powder Epoxy Polyester

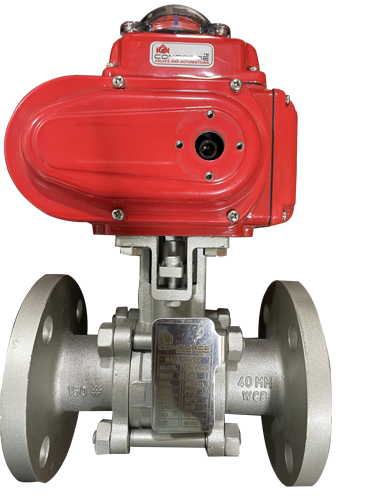

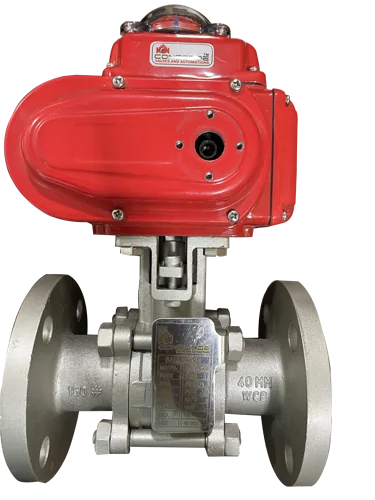

electric ball valve image

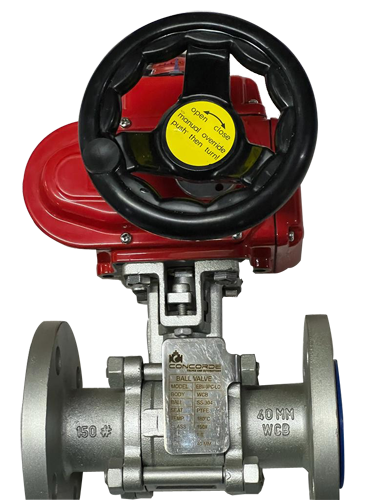

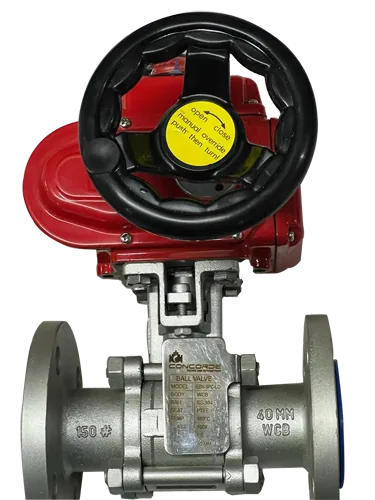

image of electric operated ball valve
