MANUAL KNIFE GATE VALVE

We have the exclusive stock & are the trader of KNIFE GATE VALVE which are available with us in different size ranging.

Knife Gate Valves are specially designed for tough working conditions. They are suitable for passing all types of materials like slurries, powder and other liquid/solid mixtures. The name of the valve is given from the bevelled bottom edge of the gate. It closes the gate even when there are some solid particles settled at the bottom of the body. Knife valves are serving for various utilities at very low cost. The maintenance of these valves is very less. Moreover, these valves are adjustable at very compact places.

CONCORDE VALVES AND AUTOMATIONS have an exclusive stock of manual knife gate valves with a wide range of varieties. We have the valves with soft sealing and metal to metal sealing options to work in different situations. Select the best suitable for you at the most affordable prices. We are always open for after services, so feel free to call us anytime and get the service done.

Product Details:

Size 50NB — 600NB Above 600NB Consult Factory
Pressure 150PSI
Temperature 0 Deg C -1200 Deg C.
Body , Chest Solid One piece casting of Cast Iron Fg 260 Cast Steel Gr WCB ,CF8,CF8M.
Seat Integral to Body, Soft, Optional.
Gate AISI SS 304,316,316L,317,317L
Screw Spindle AISI SS 410,304,316.
Nut Brass
Yoke Plate type of MS.
Gland Follower Cast Iron , Cast steel , Ductile Iron ,CF8,CF8M.
Hand Wheel Cast Iron , Cast steel , Ductile Iron
Gland Packing PTFE , PTFE Impregnated.
Ends Lugged
Port STANDARD [Round].Optional V Port, Diamond Port,.
Body Shell Test As per MSS SP- 81 Norms 10Kg/cm2
Working pressure 6Kg/cm2
Seat Leaking Test Metal Seated Vaalves as per MS SP 81 Norms & Tappi 405.
Soft Seated Valves Zero Leakage

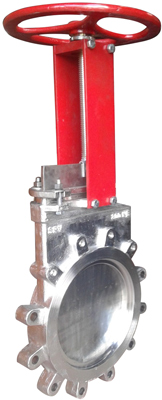

KNIFE GATE VALVE image
