Ball Type Non-Return Valve Screwed End - ISO Certified
Ball type NRV with threaded ends — automatic backflow prevention, zero manual operation required.

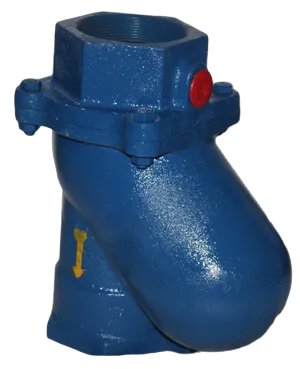

Ball Type Non-Return Valve Screwed End
India's Reliable Source for Ball Type Non-Return Valve Screwed End
Concorde Valves & Automations manufactures high-performance ball type non-return valve screwed end in Mumbai, India designed for industries where backflow can compromise system safety, efficiency, and uptime.
Built with precision-machined internals and corrosion-resistant materials, our screwed end NRVs deliver tight sealing, reliable one-way flow control, and a long operational life across water, oil, gas, chemical, and HVAC applications.
With threaded BSP and NPT end connections, installation is straightforward, no flanges, no welding, no complex tooling required.
Request a Quote
Why Choose Concorde Valves & Automations?
Quality, certification and dependable supply that industrial buyers across India rely on.
ISO Quality Manufacturing Standards
Every valve is produced under a certified quality management system. Consistent precision and repeatable reliability in each batch.
14+ Years Industry Experience
Over a decade serving water, oil, gas, chemical and HVAC sectors. Deep technical know-how across diverse applications.
Precision Machining & Testing Facilities
Advanced in-house machining and testing ensures every valve meets exact performance and dimensional standards before dispatch.
Customized Valve Solutions
Tailored sizes, materials and specifications for your project. Flexible support for OEM, bulk and replacement orders.
Pan India Supply & Export Capability
Fast dispatch from our Mumbai facility to every industrial hub across India. Export-ready packaging and complete documentation.
Reliable After-Sales Support
Responsive technical and commercial support post-delivery. We stand behind every valve we supply.
Types of Ball Type Non-Return Valve Screwed End
A complete range of screwed end NRV designs engineered for every pressure, material and installation requirement.
Standard Ball Type NRV
Designed for general-purpose applications with reliable backflow prevention.
Spring Loaded Ball NRV
Equipped with a spring mechanism for faster closing and improved sealing performance.
Metal Seat Ball NRV
Suitable for high-temperature and heavy-duty industrial applications.
Soft Seat Ball NRV
Ensures tight sealing and is ideal for water and low-pressure systems.
Stainless Steel Ball NRV
Corrosion-resistant option for chemical and harsh environments.
Brass Ball NRV
Commonly used in plumbing, water supply, and light-duty applications.
How Ball Type Non-Return Valve Screwed End Works
Inside each ball type non-return valve screwed end, a spherical ball acts as the primary sealing element. When fluid flows in the forward direction, line pressure pushes the ball off its seat, allowing unrestricted flow. The moment flow reverses or pressure drops, the ball returns to its seat and seals the passage, preventing any backflow.
The screwed end connection — available in BSP and NPT threading — ensures easy installation, a secure fit, and a reliable seal without the need for flanges or welding. This makes the valve especially suitable for compact pipelines and maintenance-friendly installations.
Applications
Ball type non-return valves screwed end from Concorde Valves serve a broad range of industries and process environments.
Water Supply Systems
Oil & Gas Pipelines
Chemical Processing Plants
HVAC Systems
Industrial Fluid Transfer Systems
Pumping and Process Industries
Benefits & Technical Specifications
Key advantages and complete engineering specifications of our ball type non-return valve screwed end.
Benefits
- Automatic Backflow Prevention — Spherical ball seals instantly on flow reversal, no manual intervention needed.
- Easy Installation — BSP and NPT threaded connections allow quick fitment with no flanges or welding required.
- Compact Design — Ideal for space-constrained pipelines and maintenance-friendly installations.
- Wide Pressure Range — Handles operating pressures up to 40 bar, suitable for light-duty to demanding industrial use.
- Corrosion-Resistant Construction — Available in stainless steel, cast iron, and brass for long-term durability.
- High Temperature Capability — Supports temperatures up to 200°C with appropriate sealing material selection.
- Low Maintenance — Simple ball-and-seat mechanism means fewer parts to service and longer maintenance intervals.
- Versatile Media Compatibility — Suitable for water, oil, gas, chemicals, and HVAC fluid systems.
Technical Specifications
| Valve Size | 15 mm to 100 mm |
|---|---|
| Body Material | Stainless Steel, Cast Iron, Brass |
| Pressure Rating | Up to 40 Bar |
| Temperature Range | -10°C to 200°C |
| End Connection | Screwed End (BSP, NPT) |
| Ball Material | PTFE, Stainless Steel |
| Sealing Material | PTFE, NBR, Viton |
| Standards Complied | ANSI, DIN, IS Standards |
| Applications | Water, Oil, Gas, Chemical, HVAC |
Quality Assurance & Testing
Every ball type non-return valve screwed end passes a strict multi-step inspection process before dispatch to ensure reliable field performance.
Hydrostatic Pressure Testing
Ensures the valve body withstands rated pressure up to 40 bar without leakage under operating conditions.
Seat Leakage Testing
Verifies tight shutoff and leak-proof ball seating performance across all valve sizes from 15 mm to 100 mm.
Thread Accuracy Checks
Confirms BSP and NPT threaded connections meet exact dimensional tolerances for secure and leak-free installation.
Ball & Seat Function Testing
Tests smooth ball movement, seating response, and backflow blocking performance under working conditions.
Ball Type Non-Return Valve Screwed End Supplier Across India
Concorde Valves & Automations is a trusted ball type non-return valve screwed end supplier in Mumbai, delivering reliable backflow prevention solutions to industries across India. We supply to major industrial hubs including Pune, Gujarat, Chennai, Hyderabad, and Delhi — backed by competitive pricing, fast dispatch, and dedicated after-sales support.
Beyond NRVs, we also manufacture a comprehensive range of industrial valves and actuators including pneumatic ball valves, butterfly valves, knife gate valves, y-type control valves, and angle control valves — engineered for precise flow control and dependable performance in process and automation industries.
Call +91 9326435528
What Our Clients Say
Trusted by procurement teams, EPC contractors and plant engineers across India.
“
We have been sourcing ball type non-return valve screwed end from Concorde Valves & Automations for our water treatment plant for the past two years. The valves have performed consistently without any leakage issues. Delivery is always on time and the team is very responsive to technical queries.
“
Concorde's screwed end NRVs are installed across our chemical processing lines and the performance has been excellent even under high pressure conditions. Material quality is top notch and we have had zero maintenance issues since installation. Highly recommend them for industrial applications.
“
We needed a reliable ball type non-return valve screwed end for our HVAC system upgrade and Concorde delivered exactly what we required. The valves fit perfectly into our existing piping, installation was straightforward, and there has been no backflow problem since commissioning.
Need a Quote on Ball Type Non-Return Valve Screwed End?
Get competitive pricing on ANSI / DIN compliant screwed end NRVs — 15 mm to 100 mm, up to 40 bar. Fast dispatch from Mumbai with pan-India delivery and export support.
Frequently Asked Questions
Answers to common questions about ball type non-return valve screwed end, materials, sizing and selection.
A ball type non-return valve screwed end is a check valve that uses a spherical ball as the sealing element and threaded connections for installation. It allows fluid to flow in one direction only and automatically blocks reverse flow when pressure drops or flow stops.
When forward flow pressure pushes the ball away from its seat, fluid passes through freely. When flow reverses or stops, the ball returns to its seat under gravity or spring force, sealing the passage and preventing backflow without any manual operation.
Our ball type non-return valve screwed end handles operating pressures up to 40 bar, making it suitable for both light-duty water systems and demanding industrial applications.
We manufacture ball type non-return valve screwed end in sizes ranging from 15 mm to 100 mm to suit various pipeline diameters across industrial and commercial applications.
The valve body is available in cast iron, stainless steel, and brass. Sealing materials include PTFE, NBR, and Viton — selected based on the media, temperature, and operating conditions.
Screwed end non-return valves use threaded connections for quick installation without flanges or additional fasteners, making them ideal for compact piping. Flanged end valves are better suited for larger pipelines and higher pressure systems where bolted connections are required.
These valves are widely used in water supply systems, oil and gas pipelines, chemical processing plants, HVAC systems, pumping stations, and general industrial fluid transfer lines.
Yes. Depending on the sealing material selected, our ball type non-return valve screwed end supports temperatures up to 200°C, with Viton and PTFE seats recommended for high-temperature media.
Yes. Concorde Valves & Automations provides customized configurations based on size, body material, pressure class, sealing material, and thread standard (BSP or NPT) to meet specific project requirements.
Concorde Valves & Automations supplies ball type non-return valve screwed end across Mumbai, Pune, Chennai, Hyderabad, Delhi, Gujarat, and pan India. Contact us for pricing, technical datasheets, or bulk order inquiries.
